OVERVIEW
No expense has been spared. CNC machined completely from 7000 Series Space-Grade Aluminum and injection molded with Carbon Nyolite, the Prime-X is a featherweight beast. This is not a flimsy splitboard binding that took shortcuts to save weight. We reduce weight by using stronger and lighter materials such as grade 5 titanium hardware and hollow pins. Our new C4 Carbon highback features a progressive reinforcement profile: stiffness down low for leverage on turns, and flexibility at the top for comfort while touring and tweaking. The Prime-X sets a new standard for backcountry snowboarders. Travel lighter, travel faster, ride harder.
Included: Bindings, Interface Kit (Ride Mode 3.0, Tour Mode, DualSpeed Riser w/ Heel-Lock). Add Quiver-Connectors to use your snowboard.
BINDING TECH
-Ride Mode: 0° to 22°, in 2° increments
-Surf Mode: 0° or 11°
-Walk Mode: -8° allows for longer stride
FEATURE
01
ACTIVE JOINING
INSTANT RESPONSE.
Pre-loaded binding to board connections give instant response. The most responsive connection for snowboards and splitboards.
FEATURE
02
C4 CARBON HIGHBACK
FEATHERWEIGHT SUPPORT.
Reducing weight while adding a little stiffness to our trusty Reactive Highback contour. Made from Karakoram’s proprietary Carbon Nyolite. Flex: 8/10.
FEATURE
03
DUAL RIDE-STRIDE
RIDE. TURN. STRIDE.
- 1/4 turn from ride mode to walk mode
- Ride Mode: 10° to 22°, in 2° increments
- Surf Mode: 0° or 11°
- Walk Mode: -8° allows for longer stride
FEATURE
04

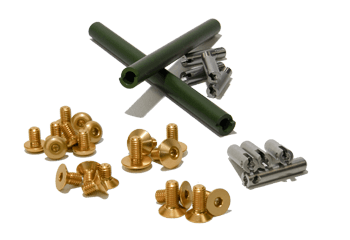

Ti AND AL HARDWARE
EVERY GRAM COUNTS.
No expense spared. All screws have been upgraded to custom anodized 7075-T6 aluminum or Grade 5 Titanium. All pins are hollow core Grade 5 Titanium.
FEATURE
05
AIRPOD STRAPS
NO PRESSURE POINTS.
- Independent Pressure Pods articulate to boot eliminating pressure points and pinch points.
- Made from P-Lite TPE, 30% lighter than standard TPU
FEATURE
06
CARBON BUCKLES
DURABLE AND LIGHT.
Made from recycled carbon fiber tow, these buckles are not just strong and light they use carbon fiber that is destine for landfills.
FEATURE
07
ASYMMETRIC HEELCUP
TOUR SUPPORT. RIDING FREEDOM.
The high outside sidewall provides the best power transfer to your edges while touring. The dropped inside sidewall allows you the freedom of movement to tuck your knee in a turn or tweak a grab.
FEATURE
08
7075-T6 OPEN CHASSIS
NATURAL BOARD FLEX.
CNC’d completely from 7000 series space grade aluminum, the open chassis allows your bindings to twist naturally with your board. Say no to dead spots under your feet.
FEATURE
09
WIDE CONTACT POINTS
DIRECT POWER TRANSFER.
No expense spared. All screws have been upgraded to custom anodized 7075-T6 aluminum or Grade 5 Titanium. All pins are hollow core Grade 5 Titanium.
RIDE MODE 3.0 TECH
FEATURE
01
DROP ON CHANGE-OVERS
ACTIVE JOINING.
Active joining allows for a loose fit then closing the lever locks your binding to board, removing all play from the system. NO SLOP.
FEATURE
02
3D COMPOSITE DESIGN.
LIGHTER. STRONGER.
4X Stronger, material is only where it needs to be to maximize the strength to weight ratio.
FEATURE
03
SEAM-LOCK.
THE BEST CONNECTION.
Patent pending cove and bead seam-lock eliminates seam movement underfoot in all directions.
FEATURE
04
SNOW EJECTION CHANNELS
EASY SNOW CLEARING.
Made from glass or carbon infused nylon, the Ride Mode 3.0 is designed to reduce snow build up and clear snow easily.
TOUR MODE TECH
Offset cradle allows snow to clear during entry.
Quick release touring bracket allows for quickest and simplest transition
Dual height climbing risers
Release load equivalent to DIN 6
Heel-Lock folds out of way when not needed
FEATURE
01
TOUR MODE
TIGHTEST AND SMOOTHEST TOUR PIVOT.
- Independent sleeves rotate freely on a fixed through axle for the stiffest and smoothest touring pivot.
- Offset cradle allows snow to clear during entry.
- Quick release touring bracket allows for quickest and simplest transition
FEATURE
02
DUAL SPEED RISERS
POLE BASKET FLIP.
- Flip up with pole basket; simple and easy
- Dual height climbing risers
FEATURE
03
FLEX-LOCK
2X THE EDGE GRIP.
Tour faster using less energy. Use the boots you want to ride in. Ride like a snowboarder. Tour like a hard booter. Add as an accessory.
FEATURE
04
HEEL-LOCK
LOCK YOUR HEEL.
- On-the-fly heel lock down
- Release load equivalent to DIN 6
- Heel-Lock folds out of way when not needed
RIDE THE RIGHT BOARD FOR THE DAY.
Pow, groomers, park, steeps, choose the right board for the day or your mood. Surf. Carve. Slash. Charge. Jib. Mount Karakoram Quiver-Connectors on all your boards and benifit from Active Joining. No more turning screws, fumbling trying to remember your stance, and wasting time when you want to switch boards. Active Joining keeps your feet spring-loaded to the board, giving you direct power transfer to the edge and instant response.
With Quiver-Connectors heading to the mountain with your quiver is easier— rack them or stack them. Drop your bindings on your board of choice and drop in.
